Description

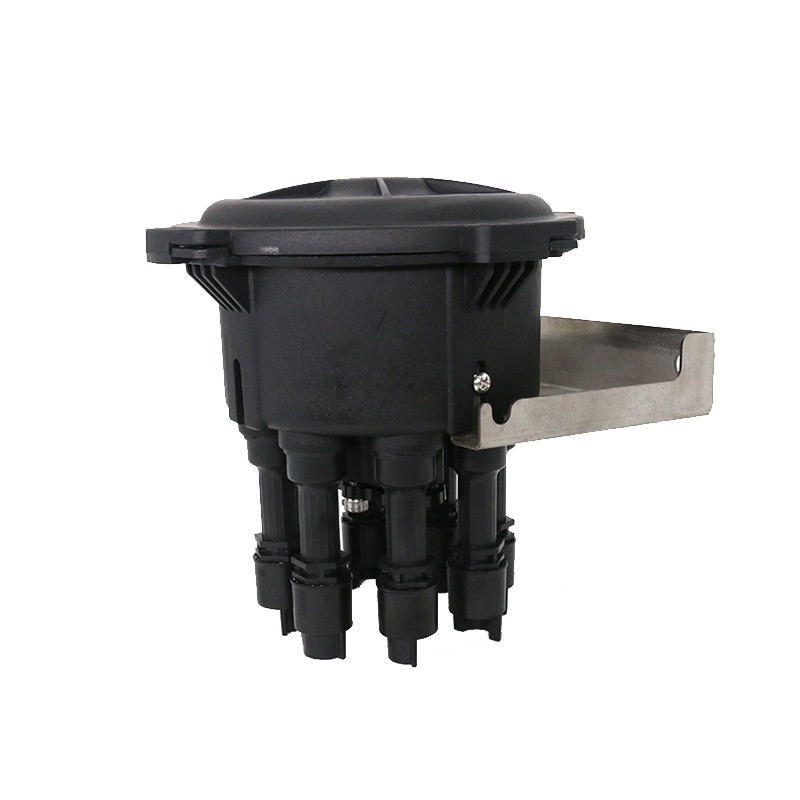

QH-FAT-8C05 optic splice closure is quickly installed and reliable sealed closure. With engineering plastic in the scientific formula, injection molding, and excellent mechanical strength, it can prevent aging effects caused by cold, hot, oxygen, UV, etc.
Produced in flame-retardant material. All the sealing accessories qualified in the viscosity and white ants resistance test.Reliable sealing performance, convenient for repeated use.
Technical Parameter
1. Working Temperature: -40 degrees centigrade~+70 degrees centigrade
2. Atmospheric Pressure: 62~106Kpa
3. Axial Tension: >1000N/1min
4. Stretching Resistance: 2000N/10 square centimeter (1min)
5. Insulation resistance: >2 × 10000MΩ
6. Voltage Strength: 15KV/1min, no arcover or breakdown
7. Pressure in the water: 50m/72hours
8. Splice tray with optical taking-in radius≥ 40mm. Low optical loss.
