Description

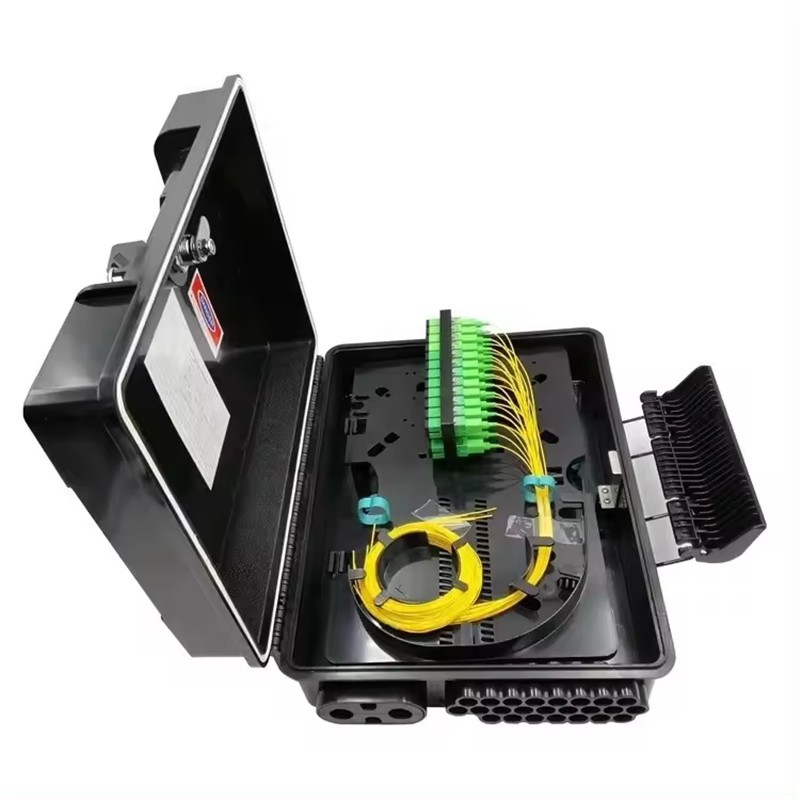

QH-FDB-24D04 fiber access terminal box is able to hold up to 24 subscribers .It is used as a terminaion point for the feeder cable to connect with drop cable in FTTx network system .It integrates fiber splicing,splitting,distribution,storage and cable connection in one solid protection box.
Features:
Water-proof design with IP-66 protection level .
Integrated with splice cassette and cable management rods.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity .
Fiber bend radius control more than 40mm.
Suitable for the fusion splice or mechanical splice.
1*16 splitter can be installed as an option .
Efficient cable management .
24 ports cable entrance for drop cable .
Configuration:
| Material |
Size A*B*C(mm) |
Max Capacity | Weight | Color |
| PC+ABS | 340*250*110 |
SC:24 ports PLC:1*16 SC type |
1.5kgs | Black |
